VBA code being embedded in a host document might be very practical for certain aspects of both development and deployment, but let’s face it, it also makes using source control (e.g. git, SVN, mercurial, etc.) with VBA projects rather frustrating. As a developer, committing source code to a repository is usually a very simple task, because the code files live in the file system, and git can track changes and additions. With VBA, we commit the code that’s exported on the file system, the host document may contain different code, and merging remote changes implies exporting your code again, working out any merge conflicts with the exported code, then re-importing the merged changes into the host document.
Which wouldn’t be so bad… if the VBE had a nice way of exporting more than one single file at a time, and if importing files had an option to replace modules when they already exist… instead of importing the module with a “1” suffix as if that were something anyone ever needed to do!
Did You Know? The VBE’s “Import File…” command doesn’t make it very obvious, but it does support importing multiple files at once. Simply select multiple files when prompted for what file to import! Another little known feature of the VBE (one of the few Rubberduck hasn’t enhanced yet) is that its Project Explorer toolwindow is a drag-and-drop destination that can accept files you dragged from the Windows Explorer (⊞+E).
Rubberduck’s Export Project… command prompts for a folder, and then proceeds to export all modules there – overwriting any existing files in that folder. By default, the hotkey for that command is Ctrl+Shift+E, but it can be reconfigured to any key combination you like.

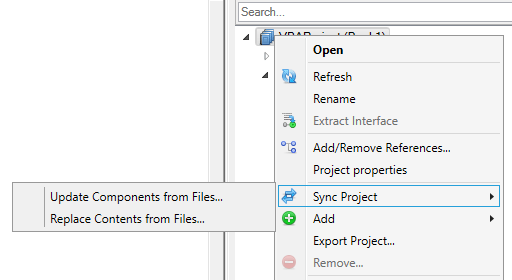

The context menu of Rubberduck’s Code Explorer toolwindow has a Sync Project sub-menu that offers two commands:
Update Components from Files…
Replace Contents from Files…
Rubberduck in general needs more documentation, but exactly what these “Sync Project” commands do is something that goes well beyond just using Rubberduck and they really deserve all the attention they can get, since they exist to facilitate an actual developmentworkflow that looks something like this:
This command prompts for source code files to import into your project.
If the project already contains a module with the same name as one of the imported files, the module is considered the same, and replaced with the imported version.
If the project does not already contain the imported modules, they’re simply added to the project.
If the project contains modules with different names than the imported files, these modules remain in the project.
This command also prompts for source code files to import into your project, but the selected files will replace everything in the current project. Because this command is potentially destructive, a confirmation is required.
The entire project becomes the selected files.
If the project contained (non-document) modules before, they are removed before the import is performed.
We have a number of open issues (here, here, and here) about getting the “export project” command to take the @Folder annotations into account, and transpose the virtual folder hierarchy into an actual folder hierarchy on the file system, which would play nicely with version control and would help better organize a VBA repository.
Creating the pull request to merge the current [next] branch into [master] is always thrilling: the incredible amount of work that goes into Rubberduck, release after release, never ceases to amaze me. This time (again!), the pull request is well over 1.2K commits. Green-release version 126.96.36.199 was all the way back on March 25, 2019 – which was the Monday that immediately followed the last MVP Global Summit.
If you’ve been keeping up with pre-release builds, you already know. If you’re still using v188.8.131.52 and have the check for newer version at startup setting enabled, your ducky will be telling you about the new build next time you fire up the VBE.
When you update to v2.5, you’ll notice a new option for the check for newer version at startup setting: there’s a new “check for pre-release builds” option that can let you know not only of a new minor version bump, but also for every pre-release build – which effectively means you now get to keep Rubberduck as up-to-date as possible (every merged pull request), without needing to subscribe to GitHub email notifications.
But the first thing you’ll notice (assuming you haven’t disabled it) will be the splash screen going back to the 2.4.0 yellow ducky splash – if you didn’t know, v2.4.1 was “ThunderFrame Edition” and all this time the splash screen was a nod to our dear friend Andrew Jackson:
Rubberduck’s repository is still filled with hundreds of Andrew’s ideas, and his impact on the project will remain with us forever. This ducky is based on Andrew’s work, too:
I’m not a fan of the font (it’s the same as on the ThunderSplash), but SHOWCARD GOTHIC was getting old and annoyingly too playful-looking. If a graphic artist is reading this and has a nice idea they’d like to contribute, they’re welcome to do so!
But you’re not here to read about the splash screen, are you?
In the past, a new green-release meant Rubberduck needed to be deployed to the project’s website itself, so that the /version/build pages could respond with the assembly version of the Rubberduck.dll file deployed. Today the website only needs a Rubberduck build to support the online indenter page, and we only need to update that build to keep the online indenter preview tool up-to-date: if no indenter changes are made, then nothing needs to be updated – the website uses GitHub’s REST API to get the latest pre-release and official “green release” version numbers, but also to download the latest xml-doc from the Rubberduck.CodeAnalysis project, and with that the website’s /inspections/list page will now start identifying the newer inspections that are only available in a pre-release build, versus those present in the latest “green release” (this hasn’t kicked in yet, only because the [master] branch didn’t have any xml-docs to download). The /inspections/details pages are also entirely generated from the in-code xml documentation, including the many examples: we’ll eventually start linking to these pages in the inspection results toolwindow, with “why am I seeing this?” links/buttons.
New inspections and new quickfixes, of course – but mostly lots of bugs fixed, and extremely important enhancements to the resolver logic effectively warrant the minor version bump. As mentioned in What’s Cooking for Rubberduck 2.5.x, special attention was given to the resolution of implicit default member calls and bang notation – and with that there’s very, very little early-bound code (if any) that Rubberduck isn’t understanding.
Self-closing pairs aren’t a new feature, but Rubberduck will now ship with the feature enabled by default (was opt-in before). We have been able to hijack and suppress the annoying “beep” that the VBE sounds when the Parameter Quick-Info command doesn’t have anything to show, and this has unlocked restoring automatic quick-info when typing the argument list of a function or procedure call: before that, using self-closing pairs worked pretty nicely, but parameter quick-info had to be manual, which was rather disturbing.
VBA + Source Control
If you’ve been following the project for some time, you probably remember the defunct source control panel – a toolwindow that essentially implemented Visual Studio’s Team Explorer and let you synchronize your VBA project with the files in a git repository. It would also list modified files and let you commit, push, pull, fetch, create new branches, merge them, etc. It failed and isn’t coming back, but the Code Explorer in v2.5 brings back the ability to synchronize the contents of your VBA project from the file system:

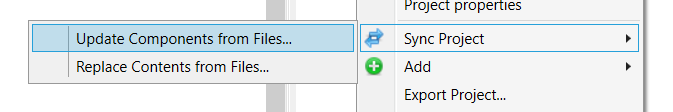

Update Components from Files will update existing modules from files in a selected folder, and Replace Contents from Files will make the VBA project mirror the contents of the selected folder (creating new project components/modules as needed). Because Visual Basic 6.0 already works off the file system, in VB6 we only offer the Update Components from Files command.
Keep in mind that while the contents of document modules can be imported, new document modules can’t be added to the host project by the VBE (the host application owns these modules: see this article): for this reason you will want to minimize the amount of code you have in modules like ThisWorkbook and other Worksheet modules in Excel, or in reports & forms in Access. Implementing the actual functionality in separate modules will make things much easier to work with this feature in conjunction with source control (whether you use git, mercurial, SVN, or any other VCS technology).
Visual Studio 2019
Rubberduck has been built with Visual Studio 2017 for quite some time: we have successfully updated all projects in the solution to the awesome new .csproj format, and until now the WPF (Windows Presentation Foundation – the .NET UI framework we use to design our toolwindows and dialogs) dependencies made it impossible to upgrade our build process to work in Visual Studio 2019 until the release of .NET Core 3 last September. This release marks the milestone where we flip the page, sunset Visual Studio 2017 – the first pull request to be merged after v2.5.0, will be one that updates the build process to work with Visual Studio 2019.
If you have forked or cloned Rubberduck, please note that Rubberduck will no longer build in VS2017, as soon as it builds in VS2019.
One of the biggest road blocks that’s currently keeping us from implementing a lot of the amazing inspection ideas (and bringing back a proper Extract Method refactoring!), is the lack of proper code path analysis. With that, we’ll have standard tooling that all these inspections can share and reuse (rather than reinvent a rather complex wheel everytime), and then we can tackle the many open Code Path Analysis issues. I’ll be posting an “Inside Rubberduck” article about the architecture and thinking behind this at some point.
Another road block, that’s currently keeping Rubberduck from fully understanding the interfaces it’s looking at, is flicking the switch for our internal TypeLib API, which taps deep into the VBIDE’s guts and gives us visibility on the internal ITypeLib of the VBA project. Rubberduck is already leveraging some of these capabilities (that’s how unit testing works in every VBA host application), but by flicking that switch we’ll be able to, among many other things, pick up the Workbook interface of the ThisWorkbook module… which unlocks fixing a number of long-standing issues and inspection false positives.
Block Completion is another upcoming feature that will possibly be getting my attention in 2020, but not before Code Path Analysis does.
In order to address the growing concerns of performance and memory consumption (especially in larger projects, which currently work best in 64-bit hosts, and possibly not at all in 32-bit hosts), we are exploring implementing a Language Server to offload parsing & resolution out of the host process, similar to how VSCode & Roslyn works, and possibly also moving a lot of the in-memory storage of referenced type libraries’ declarations to an out-of-process database.
The release was going to include a number of important fixes for the missing annotation/attribute inspection and quick-fix, but instead we disabled it, along with a few other buggy inspections, and pushed the release – 7 months after 2.0.13, the last release was now over 1,300 commits behind, and we were reaching a point where we knew a “green release” was imminent, but also a point where we were going to have to make some more changes to parts of the core – notably in order to implement the fixes for these broken annotation/attribute inspections.
So we shipped what we had, because we wouldn’t jeopardize the 2.1 release with parser logic changes at that point.
So here we are, at the crossroads: with v2.1.0 released, things are going to snowball – there’s a lot on our plates, but we now have a solid base to build upon. Here’s what’s coming:
Castle Windsor IoC: hopefully-zero user-facing changes, we’re replacing good old Ninject with a new dependency injection framework in order to gain finer control over object destruction – we will end up correctly unloading!
That’s actually priority one: the port is currently under review on GitHub, and pays a fair amount of long-standing technical debt, especially with everything involving menus.
Annotation/Attributes: fixing these inspection, and the quick-fix that synchronizes annotations with module attributes and vice-versa, will finally expose VB module and member attributes to VBA code panes, using Rubberduck’s annotation syntax.
For example, adding '@Description("This procedure does XYZ") on top of a procedure will tell Rubberduck that you mean that procedure to have a VB_Description attribute; when Rubberduck parses that module after you synchronize, it will be able to use that description in the context status bar, or as tooltips in the Code Explorer.
This is considered a serious issue, because it affects pretty much every single inspection. Luckily there’s a [rather annoying and not exactly acceptable] work-around (apply the fix bottom-to-top in a module), but still.
But there’s a Greater Picture, too.
The 2.1.x Cycle
At the end of this development cycle, Rubberduck will:
Work in the VB6 IDE;
Have formalized the notion of an experimental feature;
Have a working Extract Method refactoring;
Make you never want to use the VBE’s Project References dialog ever again;
Compute and report various code metrics, including cyclomatic complexity and nesting levels, and others(and yes, line count too);
Maybe analyze a number of execution paths and implement some of the coolest code inspections we could think of;
Be ready to get really, really serious about a tear-tab AvalonEdit code pane.
If all you’re seeing is Rubberduck’s version check, the next version you’ll be notified about will be 2.1.2, for which we’re shooting for 2017-11-13. If you want to try every build until then (or just a few), then you’ll want to keep an eye on our releases page!
The thing is, object-oriented code can definitively be written in VBA. This series of posts shows how. Let’s first debunk a few myths and misconceptions.
VBA classes don’t have constructors!
What’s a constructor but a tool for instantiating objects? In fact there are many ways to create objects, and in SOLID OOP code there shouldn’t be much Newing-up going on anyway: you would be injecting a factory or an abstract factory instead, to reduce coupling. VBA is COM, and COM loves factories. No constructors? No problem!
VBA code is inherently coupled with a UI or spreadsheet
In OOP, the ideal code has low coupling and high cohesion. This means code that doesn’t directly depend on MsgBox, or any given specific Worksheet or UserForm. Truth is, OOP code written in VB.NET or C# be it with WinForms or WPF UI frameworks, faces the same problems and can easily be written in the same “Smart UI” way that makes the UI run the show and the actual functionality completely untestable: bad code is on the programmer, not the language. And spaghetti code can be written in any language. The very same principles that make well-written VB.NET, C#, or Java code be good code, are perfectly applicable to VBA code.
Writing Object-Oriented VBA code is painful
Okay, point. The VBE’s Project Explorer does make things painful, by listing all class modules alphabetically under the same folder: it’s as if the IDE itself encouraged you to cram as much functionality as possible in as few modules as possible! This is where Rubberduck’s Code Explorer comes in to save the day though: with a simple comment annotation in each class’ declarations section, you can easily organize your project into virtual folders, nest them as you see fit, and best of all you can have a form, a standard module and a dozen class modules under the same folder if you want. There’s simply no reason to avoid VBA code with many small specialized class modules anymore.
OOP is overkill for VBA
After all, VBA is just “macros”, right? Procedural code was good enough back then, why even bother with OOP when you’re writing code in a language that was made to “get things done”, right? So we go and implement hundreds of lines of code in a worksheet event handler; we go and implement dialogs and thousands of lines of code in a form’s code-behind; we declare dozens upon dozens of global variables because “that’s how it was made to work”. Right? Nope.
It works, and everyone’s happy. Until something needs to change, and something else needs to change the week after, and then another feature needs to be added the next week, then a bug needs to be fixed in that new feature, and then fixing that bug ripples in unexpected places in the code; the beast eventually grows hair and tentacles, and you’re left sitting in front of a spaghetti mess.
And it’s hard to maintain, not because it’s VBA, but because it was written “to get things done”, but not to be maintained. This “ball of mud” code can happen in any language: it’s not the language, it’s the mentality. Most VBA developers are not programmers – code gets written the way it is because doing things in a SOLID way feels like going to the Moon and back to end up next door with the exact same functionality… and lots simply don’t know better, because nobody ever taught them. At least, that’s how it started for me.
Then there’s the IDE. You would like to refactor the code a bit, but there are no refactoring tools and no unit tests, and every change you make risks breaking something somewhere, because knowing what’s used where is terribly painful… and there’s no integrated source control, so if you make a change that the undo button doesn’t remember, you better remember what it looked like. And eventually you start commenting-out a chunk of code, or start having DoSomething_v2 procedures, and then DoSomething3. Soon you don’t know which code calls which version and you have more comments than live code. Without source control, it’s impossible to revert back to any specific version, and short of always working off a copy of the host document, code changes are done at the risk of losing everything.
No safety net. Pretty much no tooling. The VBE makes it pretty hard to work with legacy code – at least, harder than with a more modern, full-featured IDE.
Rubberduck will change that: Rubberduck wants to make writing object-oriented VBA code as enjoyable as in a modern IDE, and maintaining and refactoring legacy procedural code as easy and safe as possible.
Is OOP overkill for VBA? If it’s not overkill for even the tiniest piece of modern-language code, then I fail to see why it would be overkill for any VBA project. After all, SOLID principles are language-agnostic, and the fact that VBA doesn’t support class inheritance does nothing to affect the quality of the code that’s possible to achieve in VBA.
Wait, how would SOLID even apply to VBA?
The Single Responsibility Principle is a golden rule that’s as hard to follow in VBA as it is in any other language: write small procedures and functions that do one thing, prefer many small specialized modules over fewer, large ones.
The Open/Closed Principle, which leaves classes open for extension, closed for modification is even harder to get right, again regardless of the language. However like the others, if the other 4 principles are followed, then this one is just common sense.
Liskov Substitution Principle involves no wizardry, it’s about writing code so that an implementation of an interface guarantees that it does what the interface says it’s doing, so that any given implementation of an interface can be injected into the code, it will still run correctly.
The Interface Segregation Principle goes hand in hand with the other principles, and keeps your code cohesive, focused. Interfaces should not leak any specific implementation; an interface with too many members sounds like breaking SRP anyway.
The Dependency Inversion Principle is possibly the one that raises eyebrows, especially if you don’t know that VBA classes can implement interfaces. Yet it’s perfectly possible to write code against an IMsgBox interface, inject a MsgBoxImpl class in the production code, and inject a MsgBoxStub class in the test code.
See? Nothing VBA can’t handle. So object-oriented VBA code is theoretically possible. In the next couple of weeks we’ll go over what it means in real-world VBA code, in terms of project architecture, design patterns, and code design in general.
A little while ago, we issued an alpha release of Rubberduck 2.0, just because, well, v1.4.3 had been around since July 2015, and we wanted to say “look, this is what we’ve been working on; it’s not nearly stable yet, but we still want to show you what’s coming”.
Time flies. 6 whole weeks, 353 commits (plus a few last-minute ones), 142* pull requests from 8 contributors, 143* closed issues, 60* new ones, 129,835 additions and 113,388 deletions in 788* files later, Rubberduck still has a number of known issues, some involving COM interop, most involving COM reflection and difficulties in coming up with a host-agnostic way of identifying the exact types we’re dealing with.
It might seem obvious, but knowing that ThisWorkbook is a Workbook object is anything but trivial – at this point we know that Workbook implements a WorkbookEvents interface; we also know what events are exposed: we’re this close to connect all the dots and have a resolver that works the way we need it to.
So what does this mean?
It means a number of false positives for a number of inspections. It means false negatives for a number of others.
Other than that, if the last version you used was 1.4.3, you’re going to be blown away. If the last version you used was 2.0.1a, you’ll appreciate all the work that just went into this beta build.
There are a number of little minor issues here and there, but the major issues we’re having pretty much all revolve around resolving identifier references, but I have to admit I don’t like unit test discovery working off the parser – it just doesn’t feel right and we’re going to fix that soon.
Speaking of unit testing… thanks to @ThunderFrame’s hard work, Rubberduck 2.0 unit tests now work in Outlook, Project, Publisher and Visio.
We couldn’t hold it much longer. (was about time!)
So we issued a preview build. Keep in mind that this is a preview build – we know it’s not completed, there are little glitches and issues left and right, things to polish a bit more, it may hang or crash your host application.
And it’s missing features: the Code Explorer (and its “virtual folders”) aren’t part of this release – that’s really not ready.
The Smart Indenter portis there though, and although the preview box doesn’t show it in the settings dialog, it works pretty well.

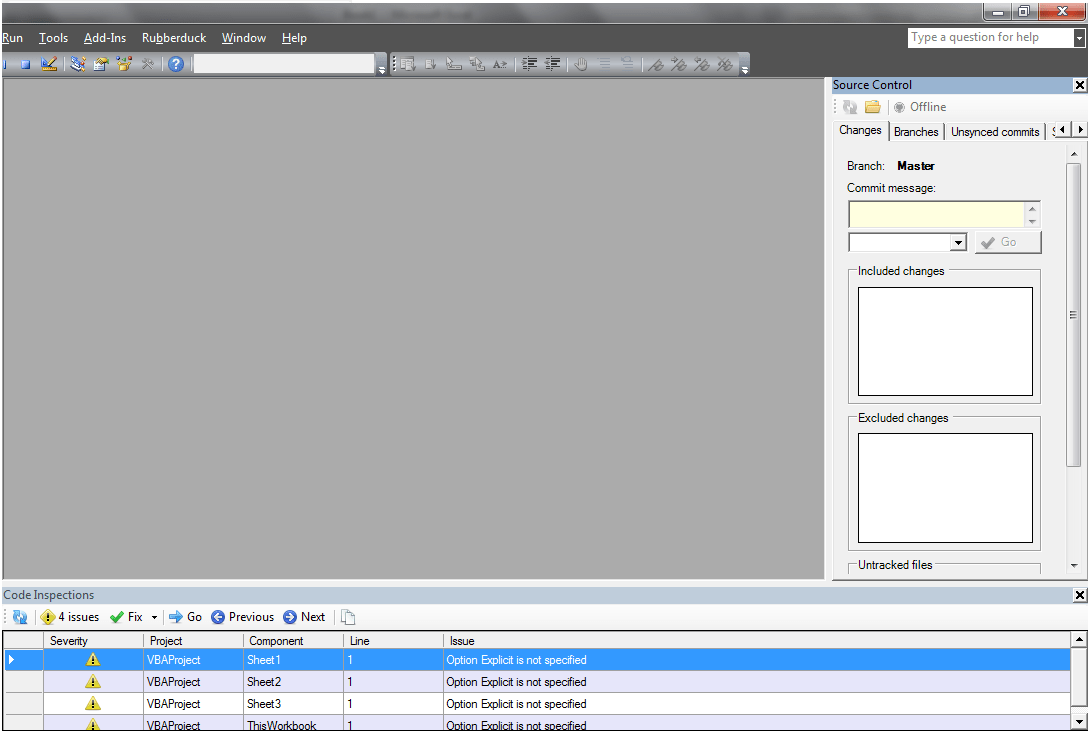

IDE-Integrated Git Source Control is there too, and works nicely as well.
A brand new shiny WPF UI for all docked toolwindows, a new settings dialog, “why?” rationale for every inspection result, “fix ’em all” across the project/module, or disable inspections with a single click.
Our parser/resolver is much more powerful now – all known parser issues (as of v1.4.3) are now fixed, and new ones you never encountered too.
Unit testing works in AutoCAD and CorelDRAW now, and although the settings have no effect, the API is there and you can use a new PermissiveAssertClass that evaluates Equals in a less strict type-safe way, to work more like VB6 would do it.
There’s a lot to say and a lot will be said I’m sure.
Poke around, play with it – by all means, break it – and if you do break it, make sure you let us know how, so we can fix it by the time we ship the “real” 2.0 build.
Apparently there’s still a fewinspection false positives (although it should be much better than in 1.x), so make sure you double-check before you fix all occurrences in project.
It was merged just yesterday. When Rubberduck 2.0 is released, VBA devs will have a new tool in their arsenal: full-fledged Git source control, seamlessly integrated into their IDE, in a dockable toolwindow:
Why use Source Control?
How many of you keep version and change tracking information in comments? Does this look any familiar?
These things don’t belong in code, they belong in your commit history. Using source control gives you that, so you can have code files that contain, well, code.
Collaborative work in VBA is pretty annoying anyway – you have to manually merge changes, and import/export modules manually, if you’re not outright copy/pasting code. This is error-prone and, let’s face it, nobody does it.
With Rubberduck and your GitHub repository two clicks away, you can now work on your code even if you don’t have the macro-enabled workbook with you right now. Because Rubberduck doesn’t just dump the .xlsm file into a GitHub repo – it actually exports each individual code file (yes, including workbooks and worksheets and UserForms) into an actual working directory, so you can work in VBA just like you would in VB6.. or C#, or Java.
You can create a branch, and work on a feature while shielding your “master” branch from these changes, issue a bug-fix on “master”, merge the bug-fix into your dev branch, finalize your work, then merge your dev branch into master, and release a new version: that’s how devs work, and that’s how VBA devs can work too, even if they’re a lone wolf.
Source Control integration was issue #50 in Rubberduck’s repository (we’re now at #1219, some 3,000 commits later) – we wanted this feature all along. And we’re delivering it next release, promise.
Special thanks to @Hosch250, who worked astonishingly hard to make this happen.
The foundation of the project needed a bit of clean-up and restructuring. The Big Refactoring is now pretty much completed, and with it, summer 2015’s feature freeze:
Feature-freeze until this is completed. We need to implement proper DI/IoC and make the code testable, if not tested. No ifs, no buts.
So we’re ready to start implementing the new features of 2.0. But before, we need to reconnect the pieces, by moving code from the 1.x “RubberduckMenu” and “RefactorMenu” classes, and into these “ICommand” implementations.
So, What’s Cooking?
Tons. The new architecture allows us to write code that is aware of the host application. This means Unit Testing commands can be disabled when the host is Outlook, for example (it seems executing VBA code on-demand from a VBE add-in isn’t possible in Outlook – ideas welcome). It also means we can write code inspections that warn about implicit references to Application.ActiveWorkbook in Excel, but that don’t run when the host application is Access, Word, or PowerPoint. Things like that, and…
Regex Search & Replace is coming. We’ll need a way to hijack Ctrl+F and Ctrl+H!
Smart Indenter is coming. The owners of this awesome add-in have graciously offered their source code to the Rubberduck project a while ago already; 2.0 isn’t releasing without an embedded Smart Indenter!
More grammar fixes on the way. This means fewer parser errors, more accurate inspections, navigation and refactorings, i.e. a more reliable tool.
Source Control Integration continues to improve, and early minor releases of 2.x will likely see a new WPF/XAML UI.
More translations have been completed since the last release: 2.0 will speak English, French, Swedish, German, Japanese… and every other translation we receive a PR for in the next.. uh… …6-8 weeks.
Shiny new UI. Docked gridviews are turning into WPF treeviews; the “Rubberduck” menu has been revamped, and under the hood, everything changed. Might as well make 2.0 look like as much change happened!
Code Inspections and Quick-Fixes that take the host application into account, giving recommendations tailored for a given host API. Also, some of the coolest inspections we envisioned as fantasies a year ago, are now possible to implement.
More refactoring tools like inline method, encapsulate field and promote local. The early minor releases of 2.x will likely see a new WPF/XAML UI for the refactorings issued in 1.x.
Something really good is cooking.
We’re also looking at implementing a more VBA-like Assert class, that would be more permissive with AreEqual and AreNotEqual than the current (C#-like strict) implementation is. Test results will be copied to clipboard or exported/serialized to XML with a simple click.
If you write some C# and would like to contribute to Rubberduck, note that our GitHub repository has a bunch of up-for-grabs issues opened, a lot of which are critical (i.e. no fix, no release) – the faster all functionalities work off the new command architecture, the faster we can deliver a pre-release…
The past few months have been tough. We were facing some serious ANTLR grammar bugs, and our identifier resolver had even more serious bugs, which meant false positives in code inspections, a rename refactoring that wouldn’t always rename all references, and a StackOverflowException if you were unlucky… which blew up Rubberduck, the VBE, and the Office host app with it, without warning.
That’s why 1.3 remained a “pre-release”.
Rubberduck 1.4 has none of these issues. Oh, our ANTLR grammar is still far from perfect (line numbers, and “precompiler” #IF statements come to mind) – but a number of bugs were fixed, and the resolver was completely rewritten. It’s not as perfect as we’d like it to be, but it correctly resolved everything we threw at it, without a single exception.
So, what’s so cool about it?
Extract Method has been around since version 1.2, and Rename was pre-released (albeit with some issues) with 1.3; Rubberduck 1.4 introduces two new refactorings:
Reorder Parameters in a procedure, and automatically adjust all call sites.
Remove Parameters from a procedure’s signature, and automatically adjust all call sites.
Rename can be used from the ProjectExplorer, Code Paneor Form Designer context menus, as well as from the Code Explorer to rename a project, a component (form, module, class), a procedure, variable, line label, …anything. This completely eliminates all excuses to keep meaningless identifiers in your code.
The Code Explorer was already a nice feature in 1.2, but Rubberduck 1.4 takes navigation to a whole new level.
Find Symbol lets you search for anything – and go to its declaration.
Find all references displays all call sites of any identifier.
Go to implementation lets you navigate implementations of an interface or interface members. Rubberduck considers any class referenced by an Implements statement as an interface.
One cool thing is that we’ve created declarations for pretty much everything in the Standard VBA library, so you can use find all references to list all usages of, say, MsgBox, or Err.Raise.
That’s right. We’ve talked about it for a while. Well, it’s here. Integrated source control, right there in the VBE. Commit, push, pull, merge, branch, to and from local or remote repositories on GitHub.
And so much more…
If you’ve never used a previous version of Rubberduck, now is the time.
Can you guess what this sketch is for? That’s right, it’s an early-stage designer view of what will become a docked toolwindow giving your VBA IDE the exact same source control functionalities Visual Studio offers through its team explorer.
