Rubberduck 2.1.x

October 17, 2017October 17, 2017 Rubberduck VBA2 Comments

The release was going to include a number of important fixes for the missing annotation/attribute inspection and quick-fix, but instead we disabled it, along with a few other buggy inspections, and pushed the release – 7 months after 2.0.13, the last release was now over 1,300 commits behind, and we were reaching a point where we knew a “green release” was imminent, but also a point where we were going to have to make some more changes to parts of the core – notably in order to implement the fixes for these broken annotation/attribute inspections.

So we shipped what we had, because we wouldn’t jeopardize the 2.1 release with parser logic changes at that point.

Crossroads

So here we are, at the crossroads: with v2.1.0 released, things are going to snowball – there’s a lot on our plates, but we now have a solid base to build upon. Here’s what’s coming:

Castle Windsor IoC: hopefully-zero user-facing changes, we’re replacing good old Ninject with a new dependency injection framework in order to gain finer control over object destruction – we will end up correctly unloading!

That’s actually priority one: the port is currently under review on GitHub, and pays a fair amount of long-standing technical debt, especially with everything involving menus.

Annotation/Attributes: fixing these inspection, and the quick-fix that synchronizes annotations with module attributes and vice-versa, will finally expose VB module and member attributes to VBA code panes, using Rubberduck’s annotation syntax.

For example, adding '@Description("This procedure does XYZ") on top of a procedure will tell Rubberduck that you mean that procedure to have a VB_Description attribute; when Rubberduck parses that module after you synchronize, it will be able to use that description in the context status bar, or as tooltips in the Code Explorer.

IgnoreOnce: this quick-fix is supported by pretty much every single inspection, and means to insert an ‘@Ignore SomeInspectionNameannotation, but the current implementation has a bug that makes successive calls offset the insertion line, which obviously results in broken code.

This is considered a serious issue, because it affects pretty much every single inspection. Luckily there’s a [rather annoying and not exactly acceptable] work-around (apply the fix bottom-to-top in a module), but still.

But there’s a Greater Picture, too.

The 2.1.x Cycle

At the end of this development cycle, Rubberduck will:

Work in the VB6 IDE;
Have formalized the notion of an experimental feature;
Have a working Extract Method refactoring;
Make you never want to use the VBE’s Project References dialog ever again;
Compute and report various code metrics, including cyclomatic complexity and nesting levels, and others (and yes, line count too);
Maybe analyze a number of execution paths and implement some of the coolest code inspections we could think of;
Be ready to get really, really serious about a tear-tab AvalonEdit code pane.

If all you’re seeing is Rubberduck’s version check, the next version you’ll be notified about will be 2.1.2, for which we’re shooting for 2017-11-13. If you want to try every build until then (or just a few), then you’ll want to keep an eye on our releases page!

2.0.14?

April 20, 2017 Rubberduck VBA1 Comment

Recently I asked on Twitter what the next RD News post should be about.

next-rdnews-post-survey-results

Seems you want to hear about upcoming new features, so… here it goes!

The current build contains a number of breakthrough features; I mentioned an actual Fakes framework for Rubberduck unit tests in an earlier post. That will be an ongoing project on its own though; as of this writing the following are implemented:

Fakes
- CurDir
- DoEvents
- Environ
- InputBox
- MsgBox
- Shell
- Timer
Stubs
- Beep
- ChDir
- ChDrive
- Kill
- MkDir
- RmDir
- SendKey

As you can see there’s still a lot to add to this list, but we’re not going to wait until it’s complete to release it. So far everything we’re ~~hijacking~~ hooking up is located in VBA7.DLL, but ideally we’ll eventually have fakes/stubs for the scripting runtime (FileSystemObject), ADODB (database access), and perhaps even host applications’ own libraries (~~stabbing~~ stubbing the Excel object has been a dream of mine) – they’ll probably become available as separate plug-in downloads, as Rubberduck is heading towards a plug-in architecture.

The essential difference between a Fake and a Stub is that a Fake‘s return value can be configured, whereas a Stub doesn’t return a value. As far as the calling VBA code is concerned, that’s nothing to care about though: it’s just another member call:

[ComVisible(true)]
[Guid(RubberduckGuid.IStubGuid)]
[EditorBrowsable(EditorBrowsableState.Always)]
public interface IStub
{
    [DispId(1)]
    [Description("Gets an interface for verifying invocations performed during the test.")]
    IVerify Verify { get; }

    [DispId(2)]
    [Description("Configures the stub such as an invocation assigns the specified value to the specified ByRef argument.")]
    void AssignsByRef(string Parameter, object Value);

    [DispId(3)]
    [Description("Configures the stub such as an invocation raises the specified run-time eror.")]
    void RaisesError(int Number = 0, string Description = "");

    [DispId(4)]
    [Description("Gets/sets a value that determines whether execution is handled by Rubberduck.")]
    bool PassThrough { get; set; }
}

So how does this sorcery work? Presently, quite rigidly:

[ComVisible(true)]
[Guid(RubberduckGuid.IFakesProviderGuid)]
[EditorBrowsable(EditorBrowsableState.Always)]
public interface IFakesProvider
{
    [DispId(1)]
    [Description("Configures VBA.Interactions.MsgBox calls.")]
    IFake MsgBox { get; }

    [DispId(2)]
    [Description("Configures VBA.Interactions.InputBox calls.")]
    IFake InputBox { get; }

    [DispId(3)]
    [Description("Configures VBA.Interaction.Beep calls.")]
    IStub Beep { get; }

    [DispId(4)]
    [Description("Configures VBA.Interaction.Environ calls.")]
    IFake Environ { get; }

    [DispId(5)]
    [Description("Configures VBA.DateTime.Timer calls.")]
    IFake Timer { get; }

    [DispId(6)]
    [Description("Configures VBA.Interaction.DoEvents calls.")]
    IFake DoEvents { get; }

    [DispId(7)]
    [Description("Configures VBA.Interaction.Shell calls.")]
    IFake Shell { get; }

    [DispId(8)]
    [Description("Configures VBA.Interaction.SendKeys calls.")]
    IStub SendKeys { get; }

    [DispId(9)]
    [Description("Configures VBA.FileSystem.Kill calls.")]
    IStub Kill { get; }

...

Not an ideal solution – the IFakesProvider API needs to change every time a new IFake or IStub implementation needs to be exposed. We’ll think of a better way (ideas welcome)…

So we use the awesomeness of EasyHook to inject a callback that executes whenever the stubbed method gets invoked in the hooked library. Implementing a stub/fake is pretty straightforward… as long as we know which internal function we’re dealing with – for example this is the Beep implementation:

internal class Beep : StubBase
{
    private static readonly IntPtr ProcessAddress = EasyHook.LocalHook.GetProcAddress(TargetLibrary, "rtcBeep");

    public Beep()
    {
        InjectDelegate(new BeepDelegate(BeepCallback), ProcessAddress);
    }

    [UnmanagedFunctionPointer(CallingConvention.StdCall, SetLastError = true)]
    private delegate void BeepDelegate();

    [DllImport(TargetLibrary, SetLastError = true)]
    private static extern void rtcBeep();

    public void BeepCallback()
    {
        OnCallBack(true);

        if (PassThrough)
        {
            rtcBeep();
        }
    }
}

As you can see the VBA7.DLL (the TargetLibrary) contains a method named rtcBeep which gets invoked whenever the VBA runtime interprets/executes a Beep keyword. The base class StubBase is responsible for telling the Verifier that an usage is being tracked, for tracking the number of invocations, …and disposing all attached hooks.

The FakesProvider disposes all fakes/stubs when a test stops executing, and knows whether a Rubberduck unit test is running: that way, Rubberduck fakes will only ever work during a unit test.

The test module template has been modified accordingly: once this feature is released, every new Rubberduck test module will include the good old Assert As Rubberduck.AssertClass field, but also a new Fakes As Rubberduck.FakesProvider module-level variable that all tests can use to configure their fakes/stubs, so you can write a test for a method that Kills all files in a folder, and verify and validate that the method does indeed invoke VBA.FileSystem.Kill with specific arguments, without worrying about actually deleting anything on disk. Or a test for a method that invokes VBA.Interaction.SendKeys, without actually sending any keys anywhere.

And just so, a new era begins.

Awesome! What else?

One of the oldest dreams in the realm of Rubberduck features, is to be able to add/remove module and member attributes without having to manually export and then re-import the module every time. None of this is merged yet (still very much WIP), but here’s the idea: a bunch of new @Annotations, and a few new inspections:

MissingAttributeInspection will compare module/member attributes to module/member annotations, and when an attribute doesn’t have a matching annotation, it will spawn an inspection result. For example if a class has a @PredeclaredId annotation, but no corresponding VB_PredeclaredId attribute, then an inspection result will tell you about it.
MissingAnnotationInspection will do the same thing, the other way around: if a member has a VB_Description attribute, but no corresponding @Description annotation, then an inspection result will also tell you about it.
IllegalAnnotationInspection will pop a result when an annotation is illegal – e.g. a member annotation at module level, or a duplicate member or module annotation.

These inspections’ quick-fixes will respectively add a missing attribute or annotation, or remove the annotation or attribute, accordingly. The new attributes are:

@Description: takes a string parameter that determines a member’s DocString, which appears in the Object Browser‘s bottom panel (and in Rubberduck 3.0’s eventual enhanced IntelliSense… but that one’s quite far down the road). “Add missing attribute” quick-fix will be adding a [MemberName].VB_Description attribute with the specified value.
@DefaultMember: a simple parameterless annotation that makes a member be the class’ default member; the quick-fix will be adding a [MemberName].VB_UserMemId attribute with a value of 0. Only one member in a given class can legally have this attribute/annotation.
@Enumerator: a simple parameterless annotation that commands a [MemberName].VB_UserMemId attribute with a value of -4, which is required when you’re writing a custom collection class that you want to be able to iterate with a For Each loop construct.
@PredeclaredId: a simple parameterless annotation that translates into a VB_PredeclaredId (class) module attribute with a value of True, which is how UserForm objects can be used without Newing them up: the VBA runtime creates a default instance, in global namespace, named after the class itself.
@Internal: another parameterless annotation, that controls the VB_Exposed module attribute, which determines if a class is exposed to other, referencing VBA projects. The attribute value will be False when this annotation is specified (it’s True by default).

Because the only way we’ve got to do this (for now) is to export the module, modify the attributes, save the file to disk, and then re-import the module, the quick-fixes will work against all results in that module, and synchronize attributes & annotations in one pass.

Because document modules can’t be imported into the project through the VBE, these attributes will unfortunately not work in document modules. Sad, but on the flip side, this might make [yet] an[other] incentive to implement functionality in dedicated modules, rather than in worksheet/workbook event handler procedures.

Rubberduck command bar addition

The Rubberduck command bar has been used as some kind of status bar from the start, but with context sensitivity, we’re using these VB_Description attributes we’re picking up, and @Description attributes, and DocString metadata in the VBA project’s referenced COM libraries, to display it right there in the toolbar:

Until we get custom IntelliSense, that’s as good as it’s going to get I guess.

TokenStreamRewriter

As of next release, every single modification to the code is done using Antlr4‘s TokenStreamRewriter – which means we’re no longer rewriting strings and using the VBIDE API to rewrite VBA code (which means a TON of code has just gone “poof!”): we now work with the very tokens that the Antlr-generated parser itself works with. This also means we can now make all the changes we want in a given module, and apply the changes all at once – by rewriting the entire module in one go. This means the VBE’s own native undo feature no longer gets overwhelmed with a rename refactoring, and it means fewer parses, too.

There’s a bit of a problem though. There are things our grammar doesn’t handle:

Line numbers
Dead code in #If / #Else branches

Rubberduck is kinda cheating, by pre-processing the code such that the parser only sees WS (whitespace) tokens in their place. This worked well… as long as we were using the VBIDE API to rewrite the code. So there’s this part still left to work out: we need the parser’s token stream to determine the “new contents” of a module, but the tokens in there aren’t necessarily the code you had in the VBE before the parse was initiated… and that’s quite a critical issue that needs to be addressed before we can think of releasing.

So we’re not releasing just yet. But when we do, it’s likely not going to be v2.0.14, for everything described above: we’re looking at v2.1 stuff here, and that makes me itch to complete the add/remove project references dialog… and then there’s data-driven testing that’s scheduled for 2.1.x…

To be continued…

@Annotations: The Underducks

March 5, 2017June 28, 2018 Rubberduck VBA4 Comments

Some of Rubberduck’s coolest features are literally hidden – not intentionally… but exposing them in the UI just wasn’t a top priority, or proved to be quite complex to implement in a nice user-friendly way.

Sad, because it makes them look like ~~underdogs~~ underducks, when they really deserve to show up front & center.

@Folder

Since v2.0.12, adding a new test module to a VBA project makes it show up under a “Tests” folder in the Code Explorer:

folders

You might be thinking “oh cool, folders!” and then go and try to add one using the Add command, or right-click somewhere to find some “add folder” command, and eventually give up.

Folders aren’t real. VBA doesn’t support folders; the code files aren’t even code files, they’re embedded in a host document! So we can’t just “create a folder” in a VBA project, it has to be something else.

This is what an early-bound 2.0.12 test module’s declarations section looks like:

Option Explicit
Option Private Module
'@TestModule
'@Folder("Tests")

Private Assert As New Rubberduck.AssertClass

Notice the @Folder(“Tests”) comment. Folders don’t really exist, but by annotating code modules like this Rubberduck can make them seem real, at least in the Code Explorer.

You can control which module appears under which folder by modifying the annotation, using the dot (“.”) as a separator:

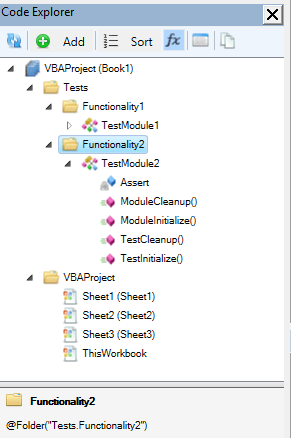

The Code Explorer‘s bottom panel shows the @Folder annotation that’s responsible for creating the selected folder, when a folder is selected (if no folder is specified, everything goes to a default “VBAProject” folder).

In this case:

'@Folder("Tests.Functionality2")

Or whatever you want to make it. When two or more modules have “Tests” as a “root folder”, Rubberduck knows to show these two modules under the same “Tests” folder.

This means large VBA projects with a ton of classes can now be organized in folders for easier browsing, like large VB.NET projects are organized in namespaces. Now VBA doesn’t support namespaces, the rules haven’t changed: you can’t have two same-name modules in the same VBA project regardless of which “folder” you’re putting them in. But it sure makes it much easier to organize things.

The reason we can’t have a simple “create folder” command, is ultimately because VBA doesn’t support folders: we can’t create an empty folder, a folder only exists because there’s a module that has an annotation that created it.

What if there’s more than one annotation?

Rubberduck will only ever use the first @Folder annotation it finds in a module; any subsequent @Folder annotation is ignored. So you can have this:

'@Folder("Tests")
'@Folder("Foo.Bar")

And Rubberduck won’t be confused; the Code Explorer will have that module under the “Tests” folder, and unless there’s another module somewhere that specifies “Foo.Bar”, there won’t be a “Foo.Bar” folder anywhere.

But because multiple @Folder annotations are potentially confusing for us mere mortals, we’ve implemented an inspection that warns you when a module has more than one single @Folder annotation specified:

Future versions will probably introduce a quick-fix for that inspection, so that extraneous annotations can be removed without even looking at the code module itself.

@IgnoreModule

Sometimes a single module can be responsible for a lot of inspection results, and that module can’t really be changed/fixed right now because, y’know, reasons – so you’d like to prevent Rubberduck inspections from looking at that module, so you can focus on inspection results from other modules without drowning them in noise from a module you’d like to ignore.

Since 2.0.12 you can now make code inspections completely ignore a specific module, with a single module-level annotation:

'@IgnoreModule

Now that’s great, but it’s also drastic: all inspections will ignore that module. If all you wanted was to shut off the use meaningful names inspection for that module without disabling the inspection itself, you can parameterize the annotation:

'@IgnoreModule UseMeaningfulName

And now only the use meaningful name inspection will be ignored in that module, without turning off the inspection itself.

So how do you know what inspection names to use? These names are the actual internal class names (minus the “Inspection” suffix) of each inspection in the Rubberduck code base itself, so they’re not exactly easy to get if you’re not looking at the Inspections namespace… fortunately the project’s website uses the Rubberduck build itself to create the Inspections/List page, and the inspection names appear in the bullet-list:

…of course, the website processes the names to insert spaces (based on the PascalCase casing – that’s why ByVal appears as “By Val”), so the actual usable @Ignore and @IgnoreModule annotation parameters are all in that list, except you need to remove the spaces when using them.

The @Ignore annotation uses the same mechanism, except it works at individual inspection result level; the Ignore Once quickfix that’s available for most inspections, automatically inserts @Ignore annotations, but there’s currently no way to automatically add an @IgnoreModule annotation – future versions will most definitely fix that though.

Nothing to declare

October 19, 2016 Rubberduck VBALeave a comment

Somewhere in the first batch of issues/to-do’s we created when we started Rubberduck on GitHub (Issue# 33 actually), there was the intention to create a tool that could locate undeclared variables, because even if you and I use Option Explicit and declare all our variables, we have brothers and sisters that have to deal with code bases that don’t.

So we tried… but Rubberduck simply couldn’t do this with the 1.x resolver: identifiers that couldn’t be resolved were countless, running an inspection that would pop a result for every single one of them would have crippled our poor little duckling… so we postponed it.

The 2.0 resolver however, thinks quite literally like VBA itself, and knows about all available types, members, globals, locals, events, enums and whatnot, not just in the VBA project, but also in every referenced COM library: if something returns a type other than Variant or Object, Rubberduck knows about it.

The role of the resolver is simple: while the parse tree of a module is being traversed, every time an identifier is encountered it attempts to determine which declaration is being referred to. If the resolver finds a corresponding declaration, an IdentifierReference is created and added to the Declaration instance. And when the resolver can’t resolve the identifier (i.e. locate the exact declaration the identifier is referring to), a null reference was returned and, unless you have detailed logging enabled, nothing notable happens.

As of the last build, instead of “doing nothing” when a reference to variable can’t be resolved to the declaration of that variable, we create a declaration on the spot: so the first appearance of a variable in an executable statement becomes the “declaration”.

We create an implicit Variant variable declaration to work with, and then this happens:

hhp2m

With a Declaration object for an undeclared variable, any further reference to the same implicit variable would simply resolve to that declaration – this means other Rubberduck features like find all references and refactor/rename can now be used with undeclared variables too.

Rubberduck is now seeing the whole picture, with or without Option Explicit.

The introduce local variable quick-fix simply inserts a “Dim VariableName As Variant” line immediately above the first use in the procedure, where VariableName is the unresolved identifier name. The variable is made an explicit Variant, …because there’s another inspection that could fire up a result if we added an implicit Variant.

The quick-fix doesn’t assume an indentation level – makes me wonder if we should run the indenter on the procedure after applying a quick-fix… but that’s another discussion.

To be continued…

OOP VBA pt.1: Debunking Stuff

June 16, 2016 Rubberduck VBALeave a comment

Ever seen that one?

It’s not a real language

The thing is, object-oriented code can definitively be written in VBA. This series of posts shows how. Let’s first debunk a few myths and misconceptions.

VBA classes don’t have constructors!

What’s a constructor but a tool for instantiating objects? In fact there are many ways to create objects, and in SOLID OOP code there shouldn’t be much Newing-up going on anyway: you would be injecting a factory or an abstract factory instead, to reduce coupling. VBA is COM, and COM loves factories. No constructors? No problem!

VBA code is inherently coupled with a UI or spreadsheet

In OOP, the ideal code has low coupling and high cohesion. This means code that doesn’t directly depend on MsgBox, or any given specific Worksheet or UserForm. Truth is, OOP code written in VB.NET or C# be it with WinForms or WPF UI frameworks, faces the same problems and can easily be written in the same “Smart UI” way that makes the UI run the show and the actual functionality completely untestable: bad code is on the programmer, not the language. And spaghetti code can be written in any language. The very same principles that make well-written VB.NET, C#, or Java code be good code, are perfectly applicable to VBA code.

Writing Object-Oriented VBA code is painful

Okay, point. The VBE’s Project Explorer does make things painful, by listing all class modules alphabetically under the same folder: it’s as if the IDE itself encouraged you to cram as much functionality as possible in as few modules as possible! This is where Rubberduck’s Code Explorer comes in to save the day though: with a simple comment annotation in each class’ declarations section, you can easily organize your project into virtual folders, nest them as you see fit, and best of all you can have a form, a standard module and a dozen class modules under the same folder if you want. There’s simply no reason to avoid VBA code with many small specialized class modules anymore.

OOP is overkill for VBA

After all, VBA is just “macros”, right? Procedural code was good enough back then, why even bother with OOP when you’re writing code in a language that was made to “get things done”, right? So we go and implement hundreds of lines of code in a worksheet event handler; we go and implement dialogs and thousands of lines of code in a form’s code-behind; we declare dozens upon dozens of global variables because “that’s how it was made to work”. Right? Nope.

It works, and everyone’s happy. Until something needs to change, and something else needs to change the week after, and then another feature needs to be added the next week, then a bug needs to be fixed in that new feature, and then fixing that bug ripples in unexpected places in the code; the beast eventually grows hair and tentacles, and you’re left sitting in front of a spaghetti mess.

And it’s hard to maintain, not because it’s VBA, but because it was written “to get things done”, but not to be maintained. This “ball of mud” code can happen in any language: it’s not the language, it’s the mentality. Most VBA developers are not programmers – code gets written the way it is because doing things in a SOLID way feels like going to the Moon and back to end up next door with the exact same functionality… and lots simply don’t know better, because nobody ever taught them. At least, that’s how it started for me.

Then there’s the IDE. You would like to refactor the code a bit, but there are no refactoring tools and no unit tests, and every change you make risks breaking something somewhere, because knowing what’s used where is terribly painful… and there’s no integrated source control, so if you make a change that the undo button doesn’t remember, you better remember what it looked like. And eventually you start commenting-out a chunk of code, or start having DoSomething_v2 procedures, and then DoSomething3. Soon you don’t know which code calls which version and you have more comments than live code. Without source control, it’s impossible to revert back to any specific version, and short of always working off a copy of the host document, code changes are done at the risk of losing everything.

No safety net. Pretty much no tooling. The VBE makes it pretty hard to work with legacy code – at least, harder than with a more modern, full-featured IDE.

Rubberduck will change that: Rubberduck wants to make writing object-oriented VBA code as enjoyable as in a modern IDE, and maintaining and refactoring legacy procedural code as easy and safe as possible.

Is OOP overkill for VBA? If it’s not overkill for even the tiniest piece of modern-language code, then I fail to see why it would be overkill for any VBA project. After all, SOLID principles are language-agnostic, and the fact that VBA doesn’t support class inheritance does nothing to affect the quality of the code that’s possible to achieve in VBA.

Wait, how would SOLID even apply to VBA?

The Single Responsibility Principle is a golden rule that’s as hard to follow in VBA as it is in any other language: write small procedures and functions that do one thing, prefer many small specialized modules over fewer, large ones.

The Open/Closed Principle, which leaves classes open for extension, closed for modification is even harder to get right, again regardless of the language. However like the others, if the other 4 principles are followed, then this one is just common sense.

Liskov Substitution Principle involves no wizardry, it’s about writing code so that an implementation of an interface guarantees that it does what the interface says it’s doing, so that any given implementation of an interface can be injected into the code, it will still run correctly.

The Interface Segregation Principle goes hand in hand with the other principles, and keeps your code cohesive, focused. Interfaces should not leak any specific implementation; an interface with too many members sounds like breaking SRP anyway.

The Dependency Inversion Principle is possibly the one that raises eyebrows, especially if you don’t know that VBA classes can implement interfaces. Yet it’s perfectly possible to write code against an IMsgBox interface, inject a MsgBoxImpl class in the production code, and inject a MsgBoxStub class in the test code.

See? Nothing VBA can’t handle. So object-oriented VBA code is theoretically possible. In the next couple of weeks we’ll go over what it means in real-world VBA code, in terms of project architecture, design patterns, and code design in general.

2.0 Beta is here!

June 8, 2016 Rubberduck VBA4 Comments

A little while ago, we issued an alpha release of Rubberduck 2.0, just because, well, v1.4.3 had been around since July 2015, and we wanted to say “look, this is what we’ve been working on; it’s not nearly stable yet, but we still want to show you what’s coming”.

Time flies. 6 whole weeks, 353 commits (plus a few last-minute ones), 142* pull requests from 8 contributors, 143* closed issues, 60* new ones, 129,835 additions and 113,388 deletions in 788* files later, Rubberduck still has a number of known issues, some involving COM interop, most involving COM reflection and difficulties in coming up with a host-agnostic way of identifying the exact types we’re dealing with.

It might seem obvious, but knowing that ThisWorkbook is a Workbook object is anything but trivial – at this point we know that Workbook implements a WorkbookEvents interface; we also know what events are exposed: we’re this close to connect all the dots and have a resolver that works the way we need it to.

So what does this mean?

It means a number of false positives for a number of inspections. It means false negatives for a number of others.

Other than that, if the last version you used was 1.4.3, you’re going to be blown away. If the last version you used was 2.0.1a, you’ll appreciate all the work that just went into this beta build.

There are a number of little minor issues here and there, but the major issues we’re having pretty much all revolve around resolving identifier references, but I have to admit I don’t like unit test discovery working off the parser – it just doesn’t feel right and we’re going to fix that soon.

Speaking of unit testing… thanks to @ThunderFrame’s hard work, Rubberduck 2.0 unit tests now work in Outlook, Project, Publisher and Visio.

@Hosch250 If you get unit testing to work in outlook I’ll eat my hat.

– @RubberDuck 2016-05-13

So Chris, how’s the hat?

Stay tuned, things are going to snowball from this point on – we’ll be releasing much more often than we have been.

*From the GitHub “Pulse” page between May 7 and June 7, 2016.

VBA Rubberducking (Part 4)

May 28, 2016May 28, 2016 Rubberduck VBALeave a comment

This post is the fourth in a series of post that walk you through the various features of the Rubberduck open-source VBE add-in.

Part 1 introduced the navigation features.
Part 2 covered the code inspections.
Part 3 featured the unit testing feature.

Refactorings

At first we were happy to just be able to inspect the code.

Quickly we realized “inspection quick-fixes” could be something else; some of the inspections’ quick-fixes are full-fledged automated refactoring operations. Renaming an identifier – and doing it right – is very different than just Ctrl+H/replace an identifier. Manually removing an uneeded parameter in an existing method breaks all call sites and the code no longer even compiles; Rubberduck sees all call sites, and knows which argument to remove everywhere to keep the code compiling.. and it’s much faster than doing it by hand!

Rubberduck 1.3 had Rename and Extract Method refactorings; v1.4.3 also had Remove Parameters and Reorder Parameters refactorings.

Rubberduck 2.0 introduces a few more.

The context menu commands are enabled depending on context; be it the current parser state, or the current selection.

Rename

That’s a pretty well-named refactoring. It deals with the impacts on the rest of the code base, of renaming pretty much any identifier.

Extract Method

Pretty much completely rewritten, v2.0 Extract Method refactoring is becoming pretty solid. Make a valid selection, and take that selection into its own member, replacing it with a call to the extracted code, all parameters and locals figured out for you.

Extract Interface

VBA supports interface inheritance; Rubberduck makes it easy to pull all public members of a module into a class that the original module then Implements. This is VBA’s own way of coding against abstractions. Unit tests love testing code that’s depending on abstractions, not concrete implementations, because then the tests can provide (“inject”) fake dependencies and test the applicative logic without triggering any unwanted side-effects, like displaying a message box, writing to a file, or to a database.

Implement Interface

Implementing all members of an interface (and all members of an interface must be implemented) can be tedious; Rubberduck automatically creates a stub method for every member of the interface specified in an Implements statement.

Remove/Reorder Parameters

Reworking a member’s signature is always annoying, because then you have to cycle through every single call site and update the argument list; Rubberduck knows where every call site is, and updates all call sites for you.

Move Closer to Usage

Variables should have the smallest possible scope. The “scope too wide” inspection uses this refactoring to move a declaration just above its first usage; it also works to rearrange “walls of declarations” at the top of a huge method you’re trying to cut into more manageable pieces.

Encapsulate Field

Fields are internal data, implementation details; objects shouldn’t expose public fields, but rather, encapsulate them and expose them as properties. Rubberduck turns a field into a property with only as much effort as it takes to name the new property.

Introduce Parameter/Field

Pretty much the antagonist of move closer to usage, this refactoring promotes a local variable to a parameter or a field, or a parameter to a field; if a new parameter is created, call sites will be updated with a “TODO” bogus argument that leaves the code uncompilable until an argument is supplied for the new parameter at all call sites.

More refactorings are planned for 2.1 and future versions, including Inline Method (the inverse of Extract Method), to move the body of a small procedure or function into all its call sites. Ideas for more refactorings and inspections? Suggest a feature!

VBA Rubberducking (Part 2)

May 14, 2016May 15, 2016 Rubberduck VBA2 Comments

This post is the second in a series of post that walk you through the various features of the Rubberduck open-source VBE add-in. The first post was about the navigation features.

Code Inspections

vbe

Back when the project started, when we started realizing what it meant to parse VBA code, we knew we were going to use that information to tell our users when we’re seeing anything from possibly iffy to this would be a bug in their code.

The first one to be implemented was OptionExplicitInspection. The way Rubberduck works, a variable that doesn’t resolve to a known declaration simply doesn’t exist. Rubberduck is designed around the fact that it’s working against code that VBA compiles; is also needs to assume you’re working with code that declares its variables.

Without ‘Option Explicit’ on, Rubberduck code inspections can yield false positives.

Because it’s best-practice to always declare your variables, and because the rest of Rubberduck won’t work as well as it should if you’re using undeclared variables, this inspection defaults to Error severity level.

OptionExplicitInspection was just the beginning. As of this writing, we have implementations for 35 inspections, most with one or more one-click quick-fixes.

35 inspections?

And there’s a couple more left to implement, too. A lot of inspections rely on successful parsing and processing of the entire project and its references; if there’s a parsing error, then Rubberduck will not produce new inspection results. When parsing succeeds, inspections run automatically and the “status bar” indicates Ready when it’s completed.

AssignedByValParameterInspection looks for parameters passed by value and assigned a new value, suggesting to either extract a local variable, or pass it by reference if the assigned value is intended to be returned to the calling code.
ConstantNotUsedInspection looks for constant declarations that are never referenced. Quick-fix is to remove the unused declaration.
DefaultProjectNameInspection looks for unnamed projects (“VBAProject”), and suggests to refactor/rename it. If you’re using source control, you’ll want to name your project, so we made an inspection for it.
EmptyStringLiteralInspection finds “” empty strings and suggests replacing with vbNullString constants.
EncapsulatePublicFieldInspection looks for public fields and suggests making it private and expose it as a property.
FunctionReturnValueNotUsedInspection locates functions whose result is returned, with none of the call sites doing anything with it. The function is used as a procedure, and Rubberduck suggests implementing it as such.
IdentifierNotAssignedInspection reports variables that are declared, but never assigned.
ImplicitActiveSheetReferenceInspection is Excel-specific, but it warns about code that implicitly refers to the active sheet.
ImplicitActiveWorkbookReferenceInspection is also Excel-specific, warns about code that implicitly refers to the active workbook.
ImplicitByRefParameterInspection parameters are passed by reference by default; a quick-fix makes the parameters be explicit about it.
ImplicitPublicMemberInspection members of a module are public by default. Quick-fix makes the member explicitly public.
ImplicitVariantReturnTypeInspection a function or property getter’s signature doesn’t specify a return type; Rubberduck makes it return a explicit Variant.
MoveFieldCloserToUsageInspection locates module-level variables that are only used in one procedure, i.e. its accessibility could be narrowed to a smaller scope.
MultilineParameterInspection finds parameters in signatures, that are declared across two or more lines (using line continuations), which hurts readability.
MultipleDeclarationsInspection finds instructions containing multiple declarations, and suggests breaking it down into multiple lines. This goes hand-in-hand with declaring variables as close as possible to their usage.
MultipleFolderAnnotationsInspection warns when Rubberduck sees more than one single @Folder annotation in a module; only the first annotation is taken into account.
NonReturningFunctionInspection tells you when a function (or property getter) isn’t assigned a return value, which is, in all likelihood, a bug in the VBA code.
ObjectVariableNotSetInspection tells you when a variable that is known to be an object type, is assigned without the Set keyword – this is a bug in the VBA code, and fires a runtime error 91 “Object or With block variable not set”.
ObsoleteCallStatementInspection locates usages of the Call keyword, which is never required. Modern form of VB code uses the implicit call syntax.
ObsoleteCommentSyntaxInspection locates usages of the Rem keyword, a dinosaurian syntax for writing comments. Modern form of VB code uses a single quote to denote a comment.
ObsoleteGlobalInspection locates usages of the Global keyword, which is deprecated by the Public access modifier. Global cannot compile when used in a class module.
ObsoleteLetStatementInspection locates usages of the Let keyword, which is required in the ancient syntax for value assignments.
ObsoleteTypeHintInspection locates usages of type hints in declarations and identifier references, suggesting to replace them with an explicit value type.
OptionBaseInspection warns when a module uses Option Base 1, which can easily lead to off-by-one bugs, if you’re not careful.
OptionExplicitInspection warns when a module does not set Option Explicit, which can lead to VBA happily compiling code that uses undeclared variables, that are undeclared because there’s a typo in the assignment instruction. Always use Option Explicit.
ParameterCanBeByValInspection tells you when a parameter is passed ByRef (implicitly or explicitly), but never assigned in the body of the member – meaning there’s no reason not to pass the parameter by value.
ParameterNotUsedInspection tells you when a parameter can be safely removed from a signature.
ProcedureCanBeWrittenAsFunctionInspection locates procedures that assign a single ByRef parameter (i.e. treating it as a return value), that would be better off written as a function.
ProcedureNotUsedInspection locates procedures that aren’t called anywhere in user code. Use an @Ignore annotation to remove false positives such as public procedures and functions called by Excel worksheets and controls.
SelfAssignedDeclarationInspection finds local object variables declared As New, which (it’s little known) affects the object’s lifetime and can lead to surprising/unexpected behavior, and bugs.
UnassignedVariableUsageInspection locates usages of variables that are referred to before being assigned a value, which is usually a bug.
UntypedFunctionUsageInspection recommends using String-returning functions available, instead of the Variant-returning ones (e.g. Mid$ vs. Mid).
UseMeaningfulNamesInspection finds identifiers with less than 3 characters, without vowels, or post-fixed with a number – and suggests renaming them. Inspection settings will eventually allow “white-listing” common names.
VariableNotAssignedInspection locates variables that are never assigned a value (or reference), which can be a bug.
VariableNotUsedInspection locates variables that might be assigned a value, but are never referred to and could be safely removed.
VariableTypeNotDeclaredInspection finds variable declarations that don’t explicitly specify a type, making the variable implicitly Variant.
WriteOnlyPropertyInspection finds properties that expose a setter (Property Let or Property Set), but no getter. This is usually a design flaw.

Oops, looks like I miscounted them… and there are even more coming up, including host-specific ones that only run when the VBE is hosted in Excel, or Access, or whatever.

The Inspection Results toolwindow

If you bring up the VBE in a brand new Excel workbook, and then bring up the inspection results toolwindow (Ctrl+Shift+I by default) you could be looking at something like this:

8owq4

Most inspections provide one or more “quick-fixes”, and sometimes a quick-fix can be applied to all inspection results at once, within a module, or even within a project. In this case Option Explicit can be automatically added to all modules that don’t have it in the project, using the blue Fix all occurrences in project link at the bottom.

Or, use the Fix drop-down menu in the top toolbar to apply a quick-fix to the selected inspection result:

fdqhe

Each inspection has its own set of “quick-fixes” in the Fix menu. A common one is Ignore once; it inserts an @Ignore annotation that instructs the specified inspection to skip a declaration or identifier reference..

InspectionResults

The bottom panel contains information about the selected inspection result, and fix-all links that always use the first quick-fix in the “Fix” menu. Disable this inspection turns the inspection’s “severity” to DoNotShow, which effectively disables the inspection.

You can access inspection settings from the Rubberduck | Settings menu in the main commandbar, or you can click the settings button in the inspection results toolwindow to bring up the settings dialog:

wqtok

If you like using the Call keyword, you can easily switch off the inspection for it from there.

The Copy toolbar button sends inspection results into the clipboard so they can be pasted into a text file or an Excel worksheet.

As with similar dockable toolwindows in Rubberduck, the way the grid regroups inspection results can be controlled using the Grouping menu:

54ur0

The refresh button causes a re-parse of any modified module; whenever parser state reaches “ready”, the inspections run and the grid refreshes – just as it would if you refreshed from the Rubberduck command bar, or from the Code Explorer toolwindow.

To be continued…

VBA Rubberducking (Part 1)

May 4, 2016August 9, 2016 Rubberduck VBA6 Comments

The VBE editor was last updated in 1998 – back when VB6 was all the rage, and the .NET framework was probably just a little more than a nice idea.

The VBE was just slightly less full-featured than its standalone counterpart, Visual Studio 6.0; however years went by, and the latest Visual Studio versions make the VBE look like an odd beast from another century.

Enter Rubberduck.

There are other VBE add-ins out there. For many years, VBA (and VB6) devs have loved using MZ-Tools and Smart Indenter – perhaps the two most popular add-ins ever written for the VBE. One has a lightning-fast analyzer that is capable of finding unused declarations, and even locates references in commented-out code; the other offers a highly configurable indenter that lets you instantly apply an indenting style to an entire module, or more surgically to a single procedure. What does Rubberduck bring to the table?

Lots, lots, lots of things.

This post is the first in a series of post that walk you through the various features of the Rubberduck open-source VBE add-in.

Navigation Tools

One of the most frustrating aspects of the VBE, is its limited set navigation tools. Let’s recap what the vanilla VBE gives us:

Ctrl+F / “Find” is a little more than a basic text search, that lets you search and replace text in the current procedure, module, project, or selection. Although VBA isn’t case-sensitive, you can match case, and use pattern matching, which isn’t exactly a regex search, but better than nothing.
Shift+F2 / “Go to Definition”, is actually fantastic: you can right-click any identifier and jump to its declaration – and if it’s an identifier defined in a referenced library, it takes you to its entry in the Object Browser.
Ctrl+R / “Project Explorer” is a dockable toolwindow that lists all opened projects and the modules under them, in a convenient TreeView where you can double-click on a node and navigate there.
Ctrl+Shift+F2 / “Last Position” is also fantastic: the VBE keeps a little stack of recent places you’ve been, and works like a “back” browser button that takes you back to where you were before. Quite possibly my personal favorite of all.
Bookmarks is under-used… for a reason. You can toggle any line as a bookmark, and cycle through them, but there’s no place to see them all at once.

And… that’s about it. Let’s see what Rubberduck has to offer.

Code Explorer

This isn’t the final version (we haven’t released it in 2.0 yet). When it grows up, it wants to be a full-fledged replacement for the Project Explorer. Its default hotkey even hijacks the Ctrl+R shortcut. Here’s what it does that the Project Explorer doesn’t do:

Drill down to module members, and then further down to list enum and user-defined type members.
See constant values as they appear in code.
Navigate not only to any module, but any field, enum member, constant, procedure, property get/let/set accessor, function, imported library functions and procedures.
Rename anything.. without breaking the code that references what you’re renaming.
Find all references to anything.
Indent an entire project, or a selected module.

But the coolest thing is that Rubberduck’s Code Explorer takes special comments like this:

 '@Folder("ProgressIndicator.Logic")

And then renders the module like this:

That’s right. Folders. In VBA. Sure, okay, they’re not real folders – it’s a trick, an illusion… but that trick now means that with a simple annotation in every module, you can organize your VBA project the way you want to; you’re no longer forced to search for a class module among 80 others in a large project, you’re free to regroup forms together with their related classes!

This feature alone is a game changer: with it, class modules can become first-class citizen; you don’t have to fear drowning in a sea of modules, and you don’t have to give them funky prefixes to have them sorted in a way that makes it anywhere near decent to navigate.

Find Symbol

One of my favorite ReSharper features, is Ctrl+T / “go to anything”. When I realized we could have this feature in the VBE, I went ahead and did it. This simple feature lets you type the name of any identifier, and locate a specific instance of it:

This includes any variable, constant, type, enum, procedure, function, property, library function/procedure, parameter, …even line labels can be navigated to.

Just Ctrl+T, type something, hit ENTER, and you’re there. Or browse the dropdown list and click that “go” button.

Find all references

Whether you’re looking for all call sites of a procedure in your code, or you’re just curious about how many times you’re using the vbNullString built-in constant, you can right-click any identifier (at the declaration, or any of its references) and Find all references will give it to you, in a convenient tabbed search results toolwindow:

Double-click any result to navigate there.

Find all implementations

Similar to find all references (its results use the same toolwindow), this one is also one of my favorite ReSharper features, that Rubberduck simply had to implement. It’s only useful when you’re coding against abstractions and implementing interfaces (if you didn’t know… yes, VBA code can do that!) – but then, it’s the best way of navigating to implementations of an interface class or member.

For example, here I added two new class modules, added this line in each, and then implemented the members:

Implements ProgressIndicator

After refreshing the parser state, I can right-click the Execute method in my ProgressIndicator class, select “Find all implementations”, and get this:

TODO Explorer

Rubberduck can (well, does actually) spot special markers in comments, and lets you navigate them in a dockable toolwindow – again, double-click navigates there:

Take that, bookmarks! You can group them by marker or by location.

By default, Rubberduck will mark NOTE, TODO and BUG as interesting, but you can always configure it to whatever suits your needs in the Todo Settings tab of the settings dialog:

Regex Search & Replace

Okay, that one’s not really there yet. But it’s totally on the roadmap, and definitely coming in a future version of Rubberduck. Take that, search with pattern!

Whew! That covers Rubberduck’s navigation features. What do you think?

To be continued…

Preview Build is Here!

April 23, 2016 Rubberduck VBALeave a comment

We couldn’t hold it much longer. (was about time!)

So we issued a preview build. Keep in mind that this is a preview build – we know it’s not completed, there are little glitches and issues left and right, things to polish a bit more, it may hang or crash your host application.

And it’s missing features: the Code Explorer (and its “virtual folders”) aren’t part of this release – that’s really not ready.

The Smart Indenter port is there though, and although the preview box doesn’t show it in the settings dialog, it works pretty well.

IDE-Integrated Git Source Control is there too, and works nicely as well.

A brand new shiny WPF UI for all docked toolwindows, a new settings dialog, “why?” rationale for every inspection result, “fix ’em all” across the project/module, or disable inspections with a single click.

Our parser/resolver is much more powerful now – all known parser issues (as of v1.4.3) are now fixed, and new ones you never encountered too.

Unit testing works in AutoCAD and CorelDRAW now, and although the settings have no effect, the API is there and you can use a new PermissiveAssertClass that evaluates Equals in a less strict type-safe way, to work more like VB6 would do it.

There’s a lot to say and a lot will be said I’m sure.

Poke around, play with it – by all means, break it – and if you do break it, make sure you let us know how, so we can fix it by the time we ship the “real” 2.0 build.

Apparently there’s still a few inspection false positives (although it should be much better than in 1.x), so make sure you double-check before you fix all occurrences in project.

To be continued…
